Hamilton 3D Printer

Hamilton 3D Printer

799.00

We are proud to announce our very own desktop 3D printer; the Hamilton 3D Printer!

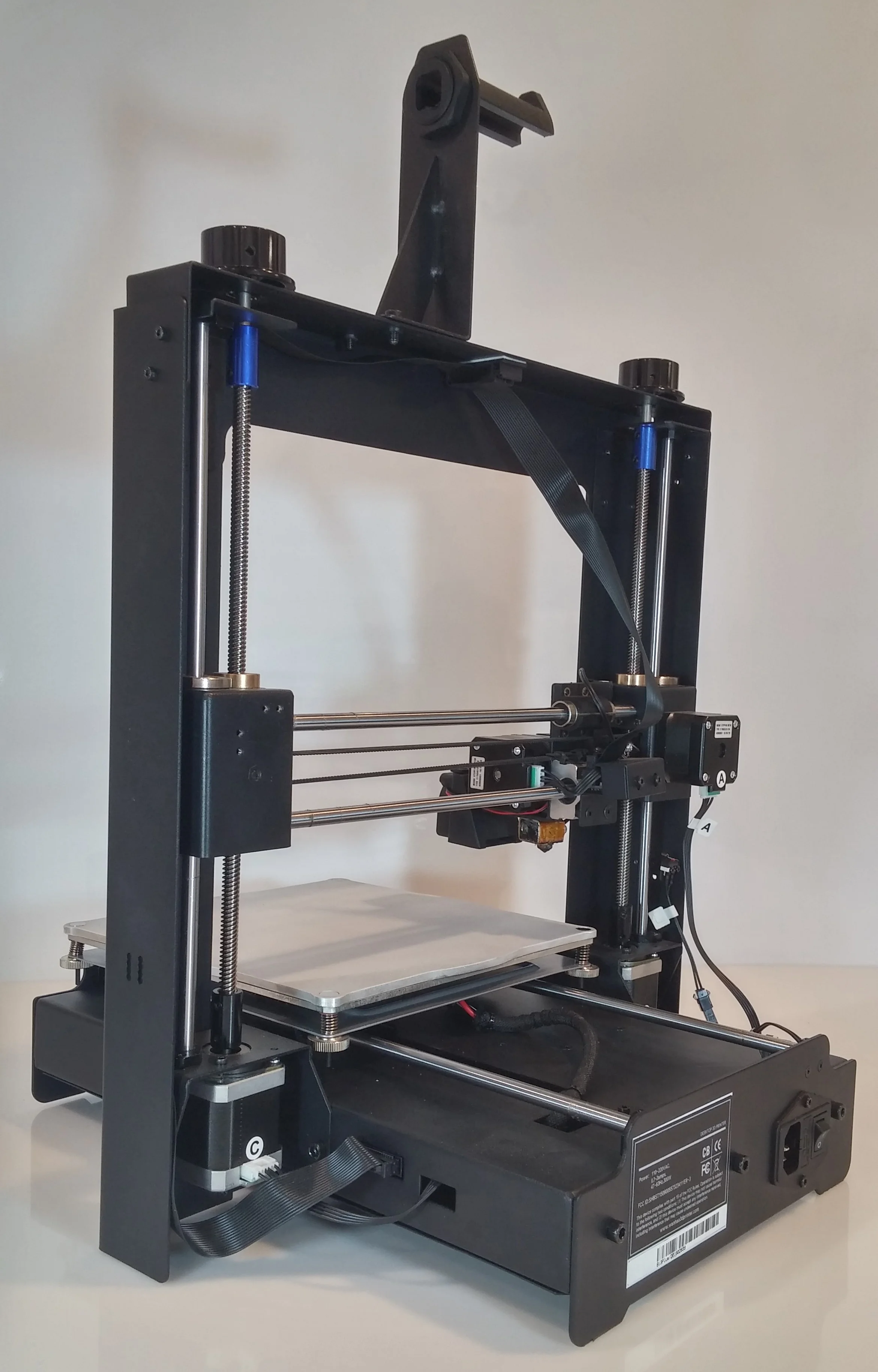

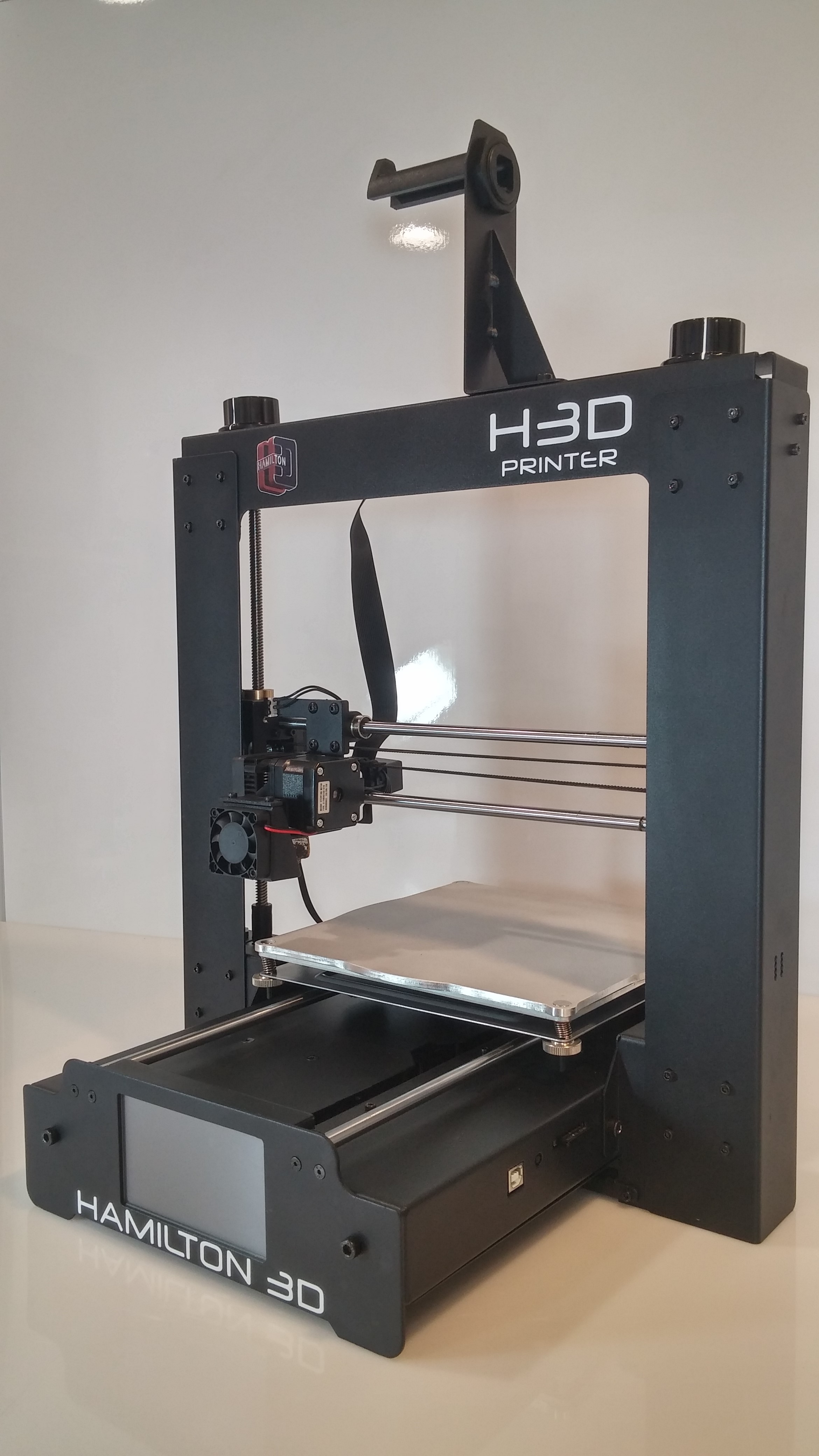

The Hamilton 3D Printer is a Prusa-style printer which includes an integrated electronics compartment, a full-sized SD card slot, and a built-in 3.25” touchscreen display.

This printer offers a build volume of 200mm x 200mm x 180mm (7.87in x 7.87in x 7.08in) and accepts open-source slicing software such as Cura. We provide an optimized Cura (version 2.6.2) PLA profile so that you can start printing with your Hamilton 3D Printer right out of the box.

Quantity:
Add To Cart

Technical Specifications

Printing

Print Technology:                                                     Fused Filament Fabrication (FFF)
Build Volume:                                                           200 x 200 x 180mm
Layer Resolution:                                                     0.1 – 0.4mm
Positioning Accuracy:                                              X 0.012mm Y 0.012mm Z 0.004mm
Extruder Quantity:                                                   Single Extruder
Nozzle Diameter:                                                     0.4mm
Print Speed:                                                             10mm/s - 70mm/s
Travel Speed:                                                           10mm/s - 70mm/s
Supported Print Materials:                                      PLA, ABS, PVA, HIPS, Wood, Flex, Conductive


Temperature

Ambient Operating Temperature:                           15°C – 30°C
Operational Extruder Temperature:                        170°C - 240°C
Operational Print Bed Temperature:                       30°C - 70°C


Software

Slicer Software:                                                        Cura 2.6.2
Cura Input Formats:                                                 .STL, .OBJ, .DAE, .AMF
Cura Output Format:                                               .GCODE
Connectivity:                                                            SD Card, USB port (Expert users only)

Electrical

Input Rating:                                                            100-240V AC, 50/60Hz, 3.5A

Physical Dimensions

Printer Frame Dimensions:                                      400 x 410 x 400mm
Weight:                                                                     10KG

Parts List

1 x Hamilton 3D Printer (Control Box, Extruder Tower, Heated Print Bed)
1 x Filament Spool Holder
1 x Filament Spool Stand
1 x Power Cable
1 x USB Cable
1 x 4GB SD Card
1 x Scraper
1 x PTFE Tube
1 x Hex Key Set
6 x Hex Bolts
2 x Cable Ties
1 x 10m PLA Filament
2 x Print Bed Mats
1 x Instruction Manual
1 x Getting Started Guide
